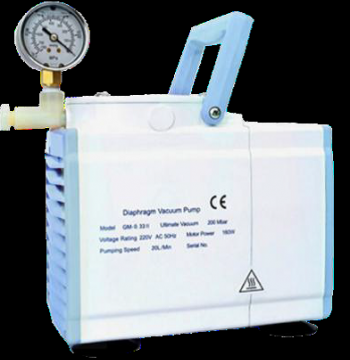

DIAPHGRAM VACUUM PUMP MODEL-033A
| Spesifikasi: | |
| ▪ Speed of Evacuation (L/min) | : 20 |
| ▪ Ultimate Pressure Vacuum | : ≥0.08Mpa 200mbar |
| ▪ Voltage Rating | : 230Vac 50Hz |
| ▪ Motor Power (W) | : 160 |
| ▪ Inlet (mm) | : Φ6 |
| ▪ Outlet (mm) | : Silencer |
| ▪ Pump Head | : 1 |
| ▪ Temp of body (℃） | : <55 |
| ▪ Dimensions (LxBxH) (mm) | : 210x120x235 |
| ▪ Weight (Kgs) | : 7.5 |
| ▪ Diaphragm | : NBR |
| ▪ Valves | : NBR |
| ▪ Noise Level (DB) | : <50 |
| ▪ Temperature of working (℃） | : 7 - 40 |
