DIGITAL CAMERA || VIDEO INSPECTION SYSTEM VIS-700
Pembelian Minimal :
1 Unit
Pembelian Maksimal :
100 Unit
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Depok
Update Terakhir :
05-04-2022 09:46
Dapatkan Spesifikasi Harga
DIGITAL CAMERA || VIDEO INSPECTION SYSTEM VIS-700 Produk Terbaik dari
Kami Berlima Sejahtera Perdagangan
Detail Produk

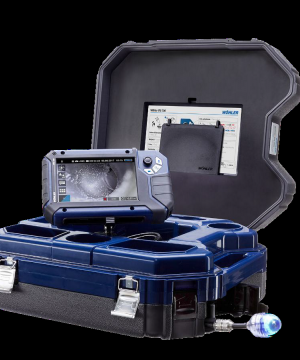

DIGITAL CAMERA || VIDEO INSPECTION SYSTEM VIS-700
| |
| Fungsi: Alat inspeksi pipa, NDT, Saluran air limbah, ruang berongga, tangki dengan kamera /video. |
| |
| Spesifikasi : |
|
| A. Monitor |
|
| ▪ Dimension housing |
: 250 x 155 x 54 mm |
| ▪ TFT display |
: 7" / 16:9 format; 1280 x 800 px |
| ▪ Video out |
: HDMI |
| ▪ Weight |
: 860 g |
| ▪ Power supply |
: USB C 5 V / 3 A |
| |
: 3.7 V, 11.4 Ah, rechargeable Li-Ion battery |
| ▪ Battery operation time |
: 4 h |
| |
|
| B. Pan & Tilt Camera Head Φ 40 mm |
| ▪ Type |
: 1/2.7" Color CMOS |
| ▪ Viewing angle, diagonal |
: 75° |
| ▪ Focus distance |
: 27 mm |
| ▪ Light source |
: 10 white LEDs |
| ▪ Protection |
: Waterproof to IP 67 |
| ▪ Dimension |
: Ø 40 x 60 mm length |
| ▪ Transmit freq. Of locator |
: variable 8,9 kHz |
| |
|
| C. Camera Rod |
|
| ▪ Length |
: 30 m |
| ▪ Diameter |
: Ø 8.6 x 5.6 mm (oval) |
| |
: Electronic meter counter |
| ▪ Resolution |
: 0.023 m |
| ▪ Max. deviation |
: 5 % of reading |
| |
|
| D. Memory |
|
| ▪ Max. capacity of SD card |
: 32 GB |
| ▪ Technology |
: SD or SDHC, speed class 10 |
| ▪ Recording capacity |
: Approx. 3 GB/h |
| ▪ Resolution recording |
: 1280 x 720 HD, max. 25 fps |
| ▪ Recording format |
: AVI (H264) |
| |
|
| E. Double-walled plastic case |
|
| ▪ Dimensions |
: 18 x 44 x 50 cm |
| ▪ Total weight incl. monitor, |
|
| camera head and push rod |
: 9.7 kg |
| |
|
| F. Locator receiver |
|
| ▪ Display |
: Graphic camera position indicator |
| |
: Output impedance, |
| ▪ headphones |
: Typ. 32 Ohm |
| ▪ Frequency |
: ~8.9 kHz |
| ▪ Power supply |
: 3.7 V rechargeable Li-Ion battery |
| ▪ Dimensions /weight |
: 32 x 14 x 7 cm / 605 g |
| |
|
| G. Complete Unit |
| - VIS 700 monitor with HD TFT monitor 7" with 1,5 m cable |
| - Glare protection |
| - Lithium-Ionen battery |
| - Pan & tilt color camera head Ø 40 mm, detachable |
| - Locator (receiver) |
| - SD memory card 32 GB |
| - Camera push rod 8.6 x 5.6 mm, 30 m long |
| (dismountable for cleaning) |
| - 3 replacement plastic domes |
| - USB-charger with USB-C-cable |
| - Plastic case |
- Anti slide mat
|
