PORTABLE FLUE GAS EMISSIONS ANALYZER A-550
Pembelian Minimal :
1 Unit
Pembelian Maksimal :
100 Unit
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Depok
Update Terakhir :
04-04-2022 16:22
Dapatkan Spesifikasi Harga
PORTABLE FLUE GAS EMISSIONS ANALYZER A-550 Produk Terbaik dari
Kami Berlima Sejahtera Perdagangan
Detail Produk

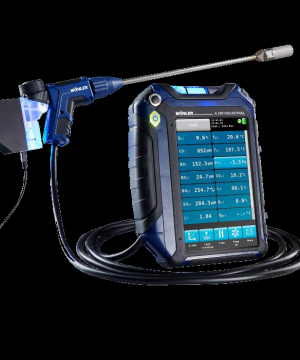

PORTABLE FLUE GAS EMISSIONS ANALYZER A-550
| |
| Fungsi: Alat ukur Gas Emisi cerobong asap (O2, CO, NO, NO2 dan SO2). |
| |
| Spesifikasi Alat : |
|
|
| ▪ Parameteres |
Range |
Accuracy |
| 1. O2 (Oxygen) |
: 0 .0-21.0 Vol % |
±0.3 Vol % |
| 2. CO (Carbon monoxide) |
: 0 - 100.000 ppm |
±100 Vol ppm |
| 3. NO (Nitric oxide) |
: 0 -3.000 ppm |
±5 Vol ppm |
| 4. NO2 (Nitric dioxide) |
: 0 - 1.000 ppm |
±5 Vol ppm |
| 5. SO2 (Sulfur dioxide) |
: 0 - 5.000 ppm |
±10 Vol ppm |
| ▪ Diffrential Pressure |
: 0 to ±110 hPa |
0.3 Pa |
| ▪ Flue Gas Temperature |
: -20 to 800 °C 0 to 133 °C ; ±2°C |
|
| ▪ Combustion Air Temperature |
: -20 to 100 °C ±1°C |
|
| ▪ Power Supply |
: Lithium, rechargeable battery |
| |
3,7V 5800 mAh, charger via USB |
| ▪ Dimension / Weight |
: 220x160x55mm without probe / 1250g |
| ▪ Length of cable hose |
: 3000 mm |
| ▪ Data memory |
: 1000 record |
| |
: Data transfer via USB, Bluetooth of Infrared |
| ▪ Display |
: Large, Color touchsreen, Display up to 14 measurement |
| |
and calculation values |
| ▪ Approvals |
: DIN EN 50379 Part 2 |
| ▪ Complete Unit |
| - Main unit and probe 295mm, 1,5m hose |
| - Thermal Printer and Printer paper |
| - Cable hose 3,0 mtr |
| - Gas Probe 1000mm with sinter filter |
| - Ambient temperature probe (plug) |
| - USB Charger with micro-USB Cable |
| - 25 wadding filter |
| - Manual books, certificate of calibration |
- Carrying case
|
